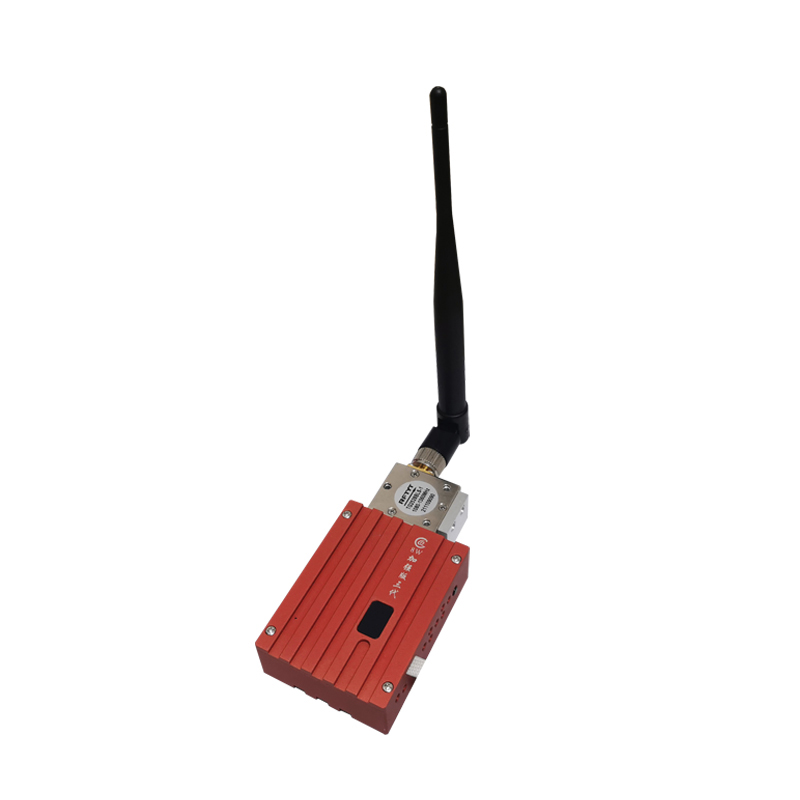

20km LOS FPV Video Transmitter with 6 Channels 8 Watt for Drone
Description:
KP-12TX8WH wireless video transmission equipment is an excellent
all aspects of performance are more varieties, and its large power
margin, more suitable for complex physical environment.
The use of 0dB (Original small antenna) in full to the antenna, the open area to ensure the transmission 5~10 or so, if the raising of the high gain directional antenna, increased to 15km LOS away, and 20km LOS from air to ground.
And transmitter technology is superb and the special metal is more
conducive to heat, more suitable for long hours of work. Signal
input with common AV interface, it can easily work with camera,
VCD, DVD and all other conventional AV interfaces compatible.
It's not only a professional wireless CCTV transmitter and receiver
for CCTV security projects but also used in the line of FPV system,
UAV, RC airplanes/helicopters, Video and Data signals at the same
time in cars of Unmanned Equipment.
Features:
1. Wireless transmission: no need to set up communications cable
2. Image, audio sync, color black and white compatible
3. Small size, light weight, easy to carry, good installation
4. Responsive, timely, send and receive real-time transmission
5. Using FM mode, anti-interference ability, good image quality
6. Highly integrated, stable and reliable transmission distance
7. DC power supply, easy to use.
8. Large output frequency, equipped fan in it, credibility, use for
long distance wireless transmit projects t.
Specification:
| Voltage | DC 12V |
| Current | 700mA |
| Frequency | 1.2Ghz (1080MHz, 1120MHz, 1160MHz, 1200MHz, 1240Mhz, 1280MHz) |
| Number of channels | 6CHs |
| Transmit Power | 8000mW |
| Video Output | 1 Vp-p(FM) |
| Audio Output | 1 Vp-p(FM) |
| Audio Carrier Ware | 5.5M 6.0M |
| Distance (Open environment) | 5~10KM LOS |
| Overall Configuration | Transmitter, AV cable, antenna |
| Temperature | -10℃ ~ +50℃ |
| Transmitter Weight | 200g |
| Dimensions (L * W * H) | 95x50x20mm |
|
|
