UGV Wireless Video Transmission System Security Protection H.265 Video Coding
Description:
The product adopts the core technologies of the fourth generation mobile communication, COFDM (Multi-Carrier Modulation Technology) and H.265 video coding technology, to transmit real-time stable high-definition audio and video in high-speed mobile and building occlusion. With 4th generation COFDM, narrow-band, and H.264 encoder technology as its code, KP-HD5000LW sends high definition images ideal for establishing rugged wireless video links in different environments, like mobile and urban environments. The compact design and low consumption make this HD transmitter enable true long range HD video transmission.
Its advantages small size, light weight that can transmit high quality full 1080P hd video and audio even though there are some building blocks or high-speed mobile shooting.
It's widely used in UAV aviation filming,covert investigation, image monitor and real-time wireless video transmission and so on.

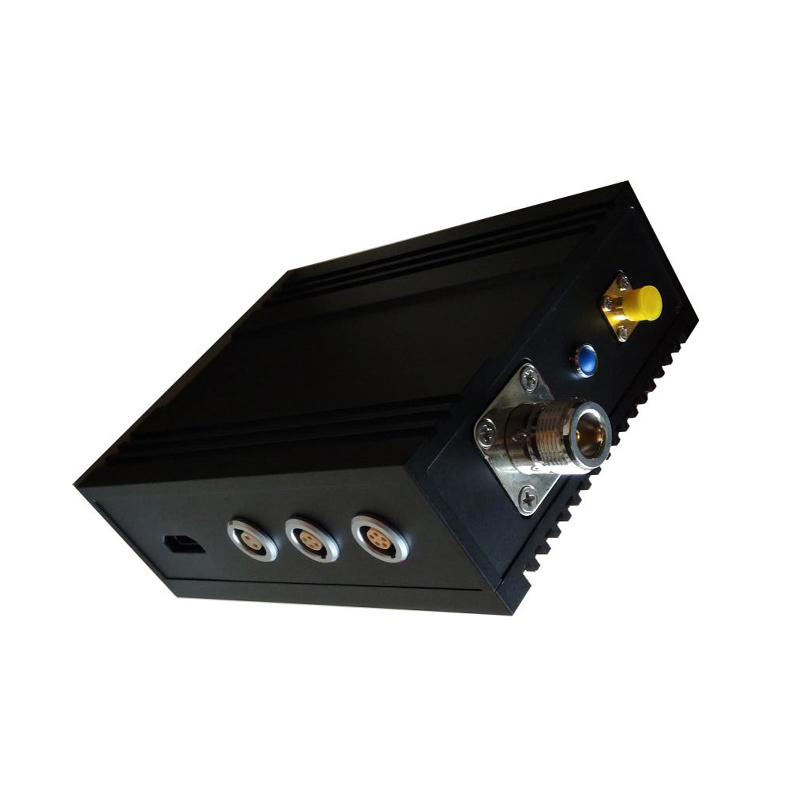

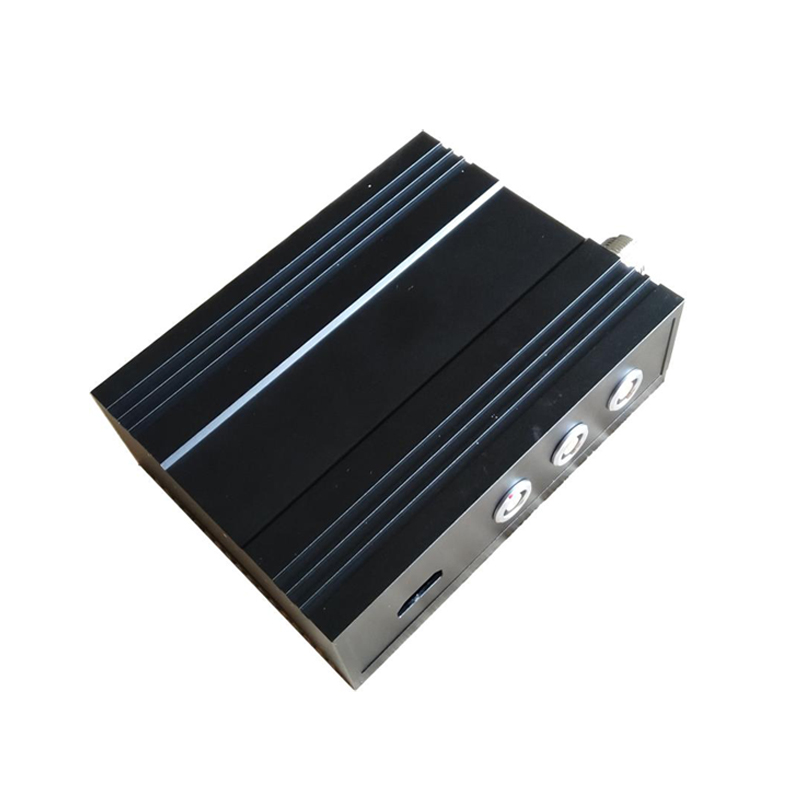

Transmitter parameter:
Modulate | COFDM |
Working voltage | DC12V |
Working current | ≤6A@DC12V |
RF bandwidth | 2/4/6/8MHz (adjustable) |
Frequency | 300-900Mhz or other frequency customized |
Output power | 2-5W adjustable |
Video input | HDM-I/AHD |
Data input (option) | RS232/RS485/TTL, up to 115200bps |
Video resolution | 1920*1080P/I@60fps; 1280*720P/I@60fps |
Video coding | H.264 |
Video rate | 512Kbps-16Mbps (adjustable) |
Encryption | AES 128 bits |
AV input | 1Vp-p, 75Ω. Left and right channel |
Video system | PAL/NTSC |
Power flatness | Full band ≤1.5dB |
CNR | ≥25dBc@48dBm |
Second harmonic | ≥60dBc |
CBER | <2.0E-4 |
VBER | <1.0E-7 |
MER | 32dB |
Carrier | 2k 4k 8k |
Constellation | QPSK,16QAM,64QAM (option) |
FEC | 1/2, 2/3, 3/4, 5/6, 7/8 (option) |
Guard Interval | 1/32, 1/16, 1/8, 1/4 (option) |
Working Temperature | -25°C~55°C |
Dimension | 130*100*43mm |
Weight | 600g |
COFDM HD Wireless Video Receiver
Receiver parameter:
Frequency | 300-900Mhz (option) |
Bandwidth | 2/3/4/5/6/7/8MHz (option) |
RF input level | -94dBm~0dBm(8M)/-98dBm~0dBm(2M) |
RF input impedance | 50Ω |
RF input type | N type |
Modulation | COFDM |
Constellation | QPSK,16QAM,64QAM(adjustable) |
FEC | 1/2,2/3,3/4,5/6,7/8(adjustable) |
Carrier | 2k |
Guard Interval | 1/32,1/16,1/8,1/4(adjustable) |
Video coding | H.264 |
Screen | 4:3 16:9 |
Video resolution | 1920*1080P/I@4Mhz |
Audio output | Stereo unbalance 300/ 200mv |
AV output | 2 Audio output + 2 Video output; HDMI |
Working voltage | AC220V/DC12V <1A |
working temperature | -20℃~+50℃ |
Dimension | 440*340*65mm(1U chassis) |
Weight | 1.5kg |
|
|
