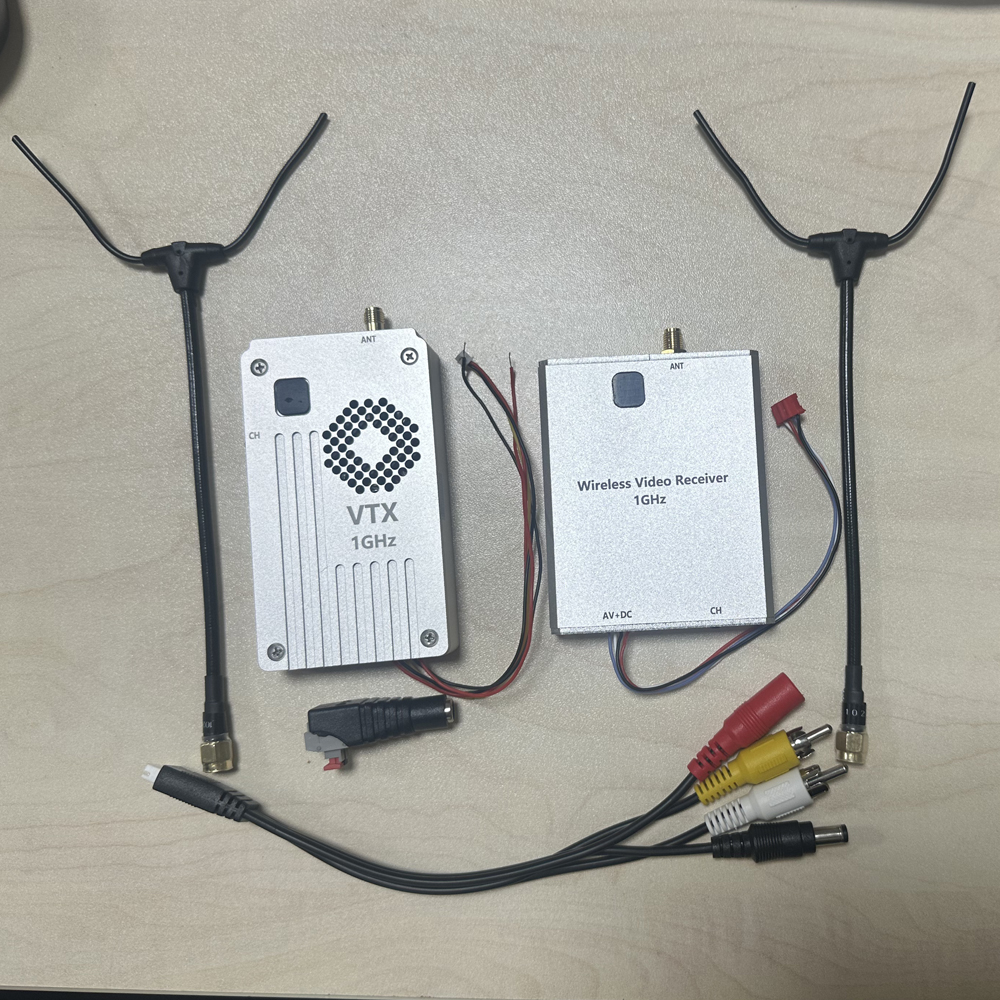

    60km 1Ghz 5W FPV VTX Drone Wireless Video Transmitter Receiver 8 Channels

    Ask Lasest Price
    Brand Name : Kimpok technology
    Model Number : KP-10VTX5W
    Certification : CE
    Price : Negotiation
    Payment Terms : T/T, Western Union, PayPal
    Supply Ability : 5000pcs/month
    Delivery Time : 1-3 working days
    • Product Details
    • Company Profile

    60km 1Ghz 5W FPV VTX Drone Wireless Video Transmitter Receiver 8 Channels

    60km 1Ghz 5W FPV VTX Drone Wireless Video Transmimtter Receiver 8 Channels


    1G 5W VTX Description:


    The new wireless video transmission device you described utilizes FM modulation mode and operates on a brand-new frequency range, steering clear of the commonly used 980~1120MHz spectrum. This approach enhances its suitability for deployment in complex environments where traditional frequencies might face interference.

    Key features of this device include:

    • Modulation Mode: FM modulation
    • Frequency Range: New frequency band different from the standard 1405~1680MHz range
    • Receiver Sensitivity: -85dBm, ensuring clear and stable image transmission
    • Transmission Range:
      • In a city open area with a ground high-gain antenna: 5~8km
      • Air-to-ground Line of Sight (LOS): Up to 60km

    It's important to note that the actual transmission distance can vary depending on the specific working environment. The device's capabilities allow for reliable video transmission over significant distances, making it suitable for various applications that require long-range wireless video communication.


    1Ghz VTX Specification:


    Product name

    Analog video transmitter

    Voltage

    DC 10V~36V

    Current

    1.6A

    Modulation

    FM

    Frequency

    1Ghz

    Channels

    8 channels

    Frequency band

    980Mhz, 1000Mhz, 1020Mhz, 1040Mhz, 1060Mhz, 1080Mhz, 1100Mhz, 1120Mhz

    Transmit Power

    5 watt

    Video Output

    1 Vp-p(FM)

    Temperature

    -10℃ ~ +50℃

    Antenna port

    SMA female

    Transmitter Weight

    104g

    Dimensions

    98*55*18mm (without antenna)


    VRX Specification:


    Product

    Analog video receiver

    Voltage

    DC 10V~18V

    Receiving sensitivity

    -85dB

    Modulation

    FM

    Frequency

    1Ghz

    Channels

    8 channels

    Frequency band

    980Mhz, 1000Mhz, 1020Mhz, 1040Mhz, 1060Mhz, 1080Mhz, 1100Mhz, 1120Mhz

    Video Output

    1 Vp-p(FM)

    Temperature

    -10℃ ~ +50℃

    Antenna port

    SMA female

    Transmitter Weight

    83g

    Dimensions (L * W * H)

    65*46*20mm (antenna port not included)


    60km 1Ghz 5W FPV VTX Drone Wireless Video Transmitter Receiver 8 Channels60km 1Ghz 5W FPV VTX Drone Wireless Video Transmitter Receiver 8 Channels60km 1Ghz 5W FPV VTX Drone Wireless Video Transmitter Receiver 8 Channels


    FAQ

    Q1: What can I buy from you?

    COFDM digital AV transmitter, IP mesh radio, analog video transmitter, radio data transceiver, and transmitter receiver OEM main board.

    Q2: Why should I choose you?

    Our core R&D team comes from the first-class university in China, major in communication engineering. We believe that wireless communication will keep on developing in professional markets in the future.

    Q3: Do you have a minimum order quantity?

    No MOQ limit, 1pc is acceptable.

    Q4: What kind of product service can I have?

    OEM & ODM service.

    Q5: What is the product warranty?

    We offer two-year-warranty and lifelong maintenance.

    Q6: What is the average lead time?

    5-7 working days for regular model, and 20-30 working days for customized model.

    Q7: What kinds of payment methods do you accept?

    We accept bank transfer, Western Union, PayPal, or cash payment.

    Q8: Can you supply the relevant documentation?

    Yes, we can provide most documentation including Certificates of Analysis / Conformance; Country of Origin, and other export documents where required.


    Our Service:


    · One-stop ODM/OEM solution;

    · 24-hour technical support;

    · Lifelong maintenance (Replacement parts will be charged after a year);

    · Provide professional system design and construction;

    · You will get good price and high quality here since we are an experienced manufacturer in wireless microwave transmission area since 2008, we are the source.
