50-60km Drone Video Transmitter 500MHz 5W Wireless Video Transmitter
Description:
This is a brand-new wireless video transmission device, which adopts FM modulation mode and brand-new frequency, avoiding the standard frequency of 1.2Ghz/1.5Ghz/2.4Ghz wireless transmission that has been used more in the same range, and is more suitable for use in complex environments. The receiver sensitivity is -85dBm, and the transmitted image is clear and stable. With a ground high-gain antenna, it can transmit 5~10km in the open area of the city, and about 60km in the air-to-ground LOS with high gain antenna (the transmission distance is different in different environments, and the specific transmission distance depends on the actual working environment).

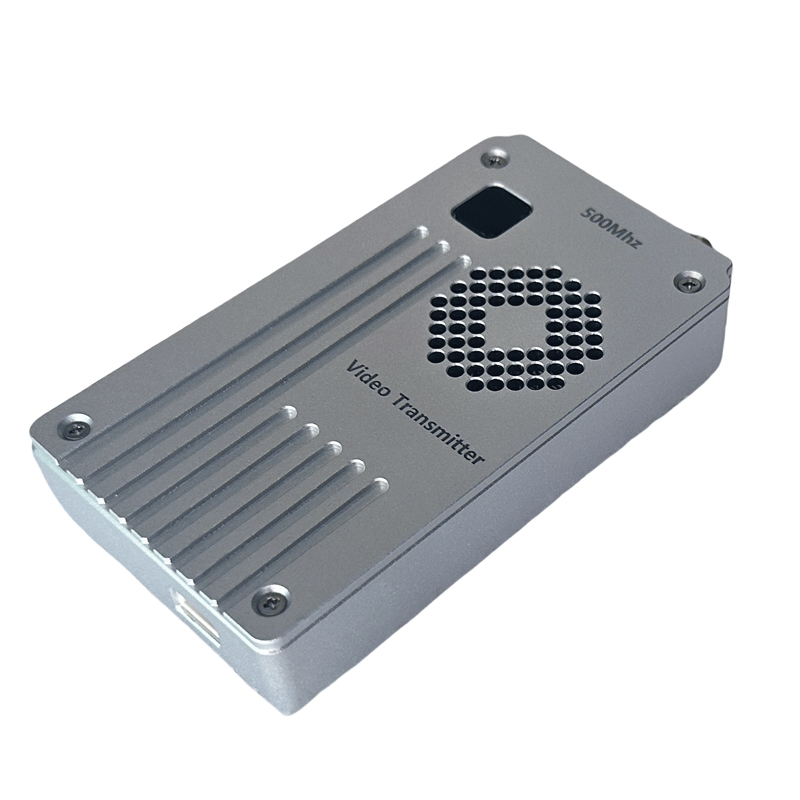

The transmitter is exquisitely crafted, made of special metal, and also has a high-speed fan, which is more conducive to heat dissipation and more suitable for long-term work.
Equipped with a composite connection cable, it is easier to connect the power supply and camera.
The long range video transmitter and receiver is not only a professional wireless CCTV transmitter and receiver for CCTV security projects, but also can be used for video transmission of FPV systems, drones, model aircraft/helicopters, unmanned equipment vehicles, etc. (frequencies are customizable).
VTX Specification:
| Product name | Analog video transmitter |
| Voltage | DC 10V~36V |
| Current | 1.3A |
| Modulation | FM |
| Frequency | 300Mhz~1500Mhz (optional) |
| Channels | 8 channels |
| Frequency band (choose one series) | 300Mhz: (320Mhz, 340Mhz, 360Mhz, 380Mhz) (customization) 500Mhz: (460Mhz, 490Mhz, 500Mhz, 520Mhz, 540Mhz, 560Mhz, 580Mhz, 600Mhz) 600Mhz: (620Mhz, 640Mhz, 660Mhz, 680Mhz, 700Mhz, 720Mhz, 740Mhz, 760Mhz) 800Mhz: (800Mhz, 820Mhz, 840Mhz, 860Mhz, 880Mhz, 900Mhz, 920Mhz, 940Mhz) 1Ghz: (980Mhz, 1000Mhz, 1020Mhz, 1040Mhz, 1060Mhz, 1080Mhz, 1100Mhz, 1120Mhz) 1.2Ghz: (1140Mhz, 1160Mhz, 1180Mhz, 1200Mhz, 1220Mhz, 1240Mhz, 1260Mhz, 1280Mhz) 1.3Ghz: (1300Mhz, 1320Mhz, 1340Mhz, 1360Mhz, 1380Mhz, 1400Mhz, 1420Mhz, 1440Mhz) 1.5Ghz: (1460Mhz, 1480Mhz, 1500Mhz, 1520Mhz, 1540Mhz, 1560Mhz, 1580Mhz, 1600Mhz) |
| Transmit Power | 5 watt |
| Video Output | 1 Vp-p(FM) |
| Temperature | -10℃ ~ +50℃ |
| Antenna port | SMA female |
| Transmitter Weight | 104g |
| Dimensions | 98*55*18mm (without antenna) |
VRX Specification:
| Product | Analog video receiver |
| Voltage | DC 10V~18V |
| Receiving sensitivity | -85dB |
| Modulation | FM |
| Frequency | 300Mhz~900Mhz (optional) |
| Channels | 8 channels |
| Frequency band (choose one series) | 300Mhz: (320Mhz, 340Mhz, 360Mhz, 380Mhz) (customization) 500Mhz: (490Mhz, 500Mhz, 520Mhz, 540Mhz, 560Mhz, 580Mhz, 600Mhz, 620Mhz) 600Mhz: (620Mhz, 640Mhz, 660Mhz, 680Mhz, 700Mhz, 720Mhz, 740Mhz, 760Mhz) 800Mhz: (800Mhz, 820Mhz, 840Mhz, 860Mhz, 880Mhz, 900Mhz, 920Mhz, 940Mhz) 1Ghz: (980Mhz, 1000Mhz, 1020Mhz, 1040Mhz, 1060Mhz, 1080Mhz, 1100Mhz, 1120Mhz) 1.2Ghz: (1140Mhz, 1160Mhz, 1180Mhz, 1200Mhz, 1220Mhz, 1240Mhz, 1260Mhz, 1280Mhz) 1.3Ghz: (1300Mhz, 1320Mhz, 1340Mhz, 1360Mhz, 1380Mhz, 1400Mhz, 1420Mhz, 1440Mhz) 1.5Ghz: (1460Mhz, 1480Mhz, 1500Mhz, 1520Mhz, 1540Mhz, 1560Mhz, 1580Mhz, 1600Mhz) |
| Video Output | 1 Vp-p(FM) |
| Temperature | -10℃ ~ +50℃ |
| Antenna port | SMA female |
| Transmitter Weight | 83g |
| Dimensions (L * W * H) | 75*45*20mm (antenna port not included) |
Antenna must be connected before connect to power, otherwise it will be easy to burned-out!
