Outdoor Long Range COFDM Wireless Transmitter 60W Video and Data Transmission RS232/RS485 PTZ Control
Introduction of long range COFDM video transmitter:
The KP-CM60H is a powerful COFDM digital video data transmitter
from Kimpok. With latest COFDM modulation, narrow-band, and H.264
encoder technology as its code, the KP-CM60H COFDM HD video voice
digital transmitter sends high definition images ideal for
establishing rugged wireless video links in different environments,
like mobile and urban environments. The high power and high
definition make the KP-CM60H COFDM video transmitter ideal for

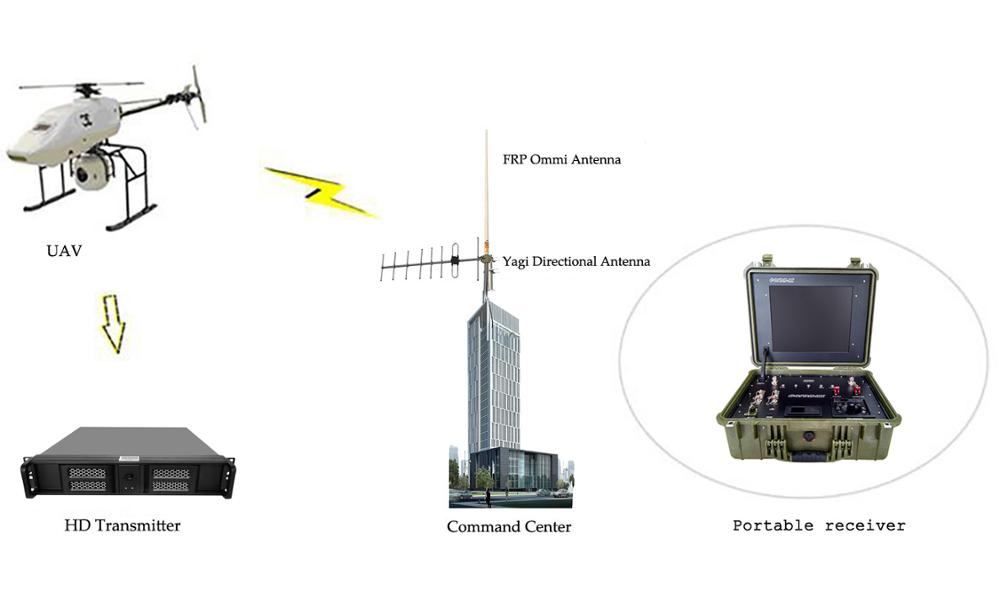

large UAV super long range video communication and mobile vehicle
to vehicle, or mobile vehicle to command center building wireless
video communication applications, enabling true long range HD video
data transmission.
Special features:
* 1080P high quality video images transmission
* strong safety with AES user-defined passwords
* 60Watts high power and low latency
* support NLOS and fast moving environments but still in stable
signals transmission
* easy operation by digital panel configuration, and LCD display
* designed in military-grade level
* voice and video logn range transmission
Transmitter configuration panel:
Specification:
| Voltage | DC28V |
| Bandwidth | 2/2.5/4/8MHz |
| Frequency video | 550MHz-600MHz stepped in 1MHz; other Frequency can be customized |
| Frequency data | 150MHz |
| Modulation | COFDM 2K |
| RF power | 60W |
| FEC | 1/2, 2/3, 3/4, 7/8 |
| Guard interval | 1/32, 1/16, 1/8, 1/4 |
| Video port | Analog and HD |
| Data port | RS232/485 |
| Video resolution | 1080P/i & 720P/i |
| Video coding | H.264 |
| Video format | PAL/NTSC |
| Encryption | AES128/256bits |
| Dimension | 490*450*90mm |
| Weight | 16kg |
| Parameter setting | user manually setting via LCD display |
