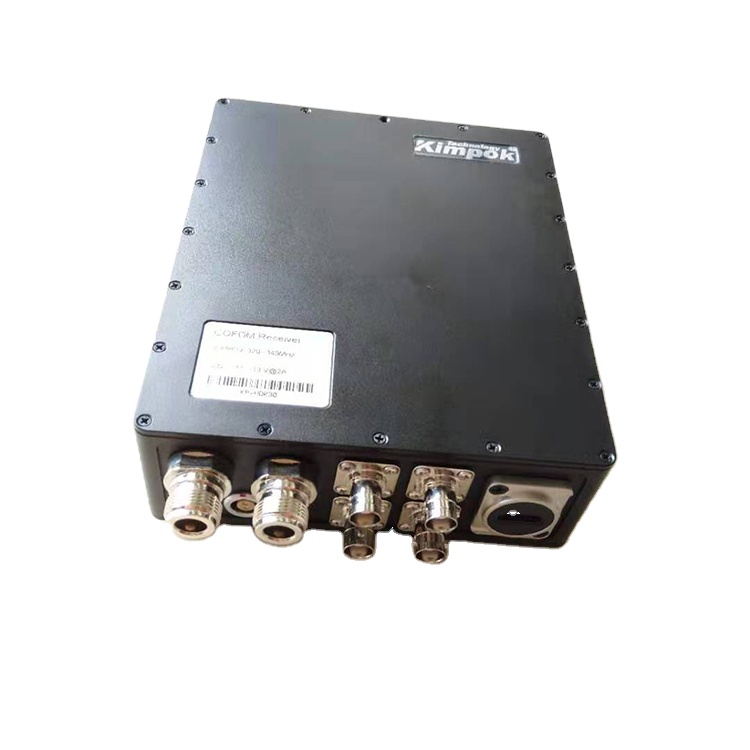

Kimpok Technology Co., Ltd. Specialist of Mobile Video Wireless Transmission
1 Years
| Ask Lasest Price | |
| Brand Name : | Kimpok |
| Model Number : | KP-HDR30 |
| Price : | Negotiation |
| Certification : | CE |
| Payment Terms : | T/T, PayPal, Alipay |
| Supply Ability : | 5000/month |
| Delivery Time : | 1-3 working days |
Product Features:
1.Small size and light weight;
2.Easy to be carried;
3.Safe and reliable;
4.Stereo audio output;
5.<-105dBm Sensitivity:
6.COFDM modulation,H.264/H.265 coding
Specifications:
DC Input | AC220V/DC12V <1A |
Working Current | ≤1.1A DC12.5V |
Receiving sensitivity | ≤-102dBm /4MHz, ≤-95dBm /8MHz |
BER | BER≤1×10-4 |
Frequency input range | 300MHz~4700MHz |
Input interface | N(type),Dual antenna diversity reception technology |
Modulation | COFDM |
RF bandwidth | 4/8MHz (adjustable) |
Constellation | QPSK,16QAM,64QAM (optional) |
Encryption | AES 128/265 bit / ALLTECH Basic scrambling |
FEC | 1/2,2/3,3/4,5/6, 7/8 (optional) |
Guard Interval | 1/32,1/16,1/8,1/4 (optional) |
Carrier | 2K |
Video formats and amplitude | PAL/NTSC, 1Vp-p/75Ω |
Video compression | H.264/H.265/MPEG-2(autoadaptation) |
Decode code stream rate | 0.5-12Mbps |
Video output interface | Composite video RCA,HDMI,ASI,HD-SDI(alternative) |
Video channel characteristic | Differential gain DG≤1.5%, Differential phase DP≤1° |
Audio output | Left and right channel and stereo |
Dimension | 170*140*60mm |
Weight: | 1kg |
