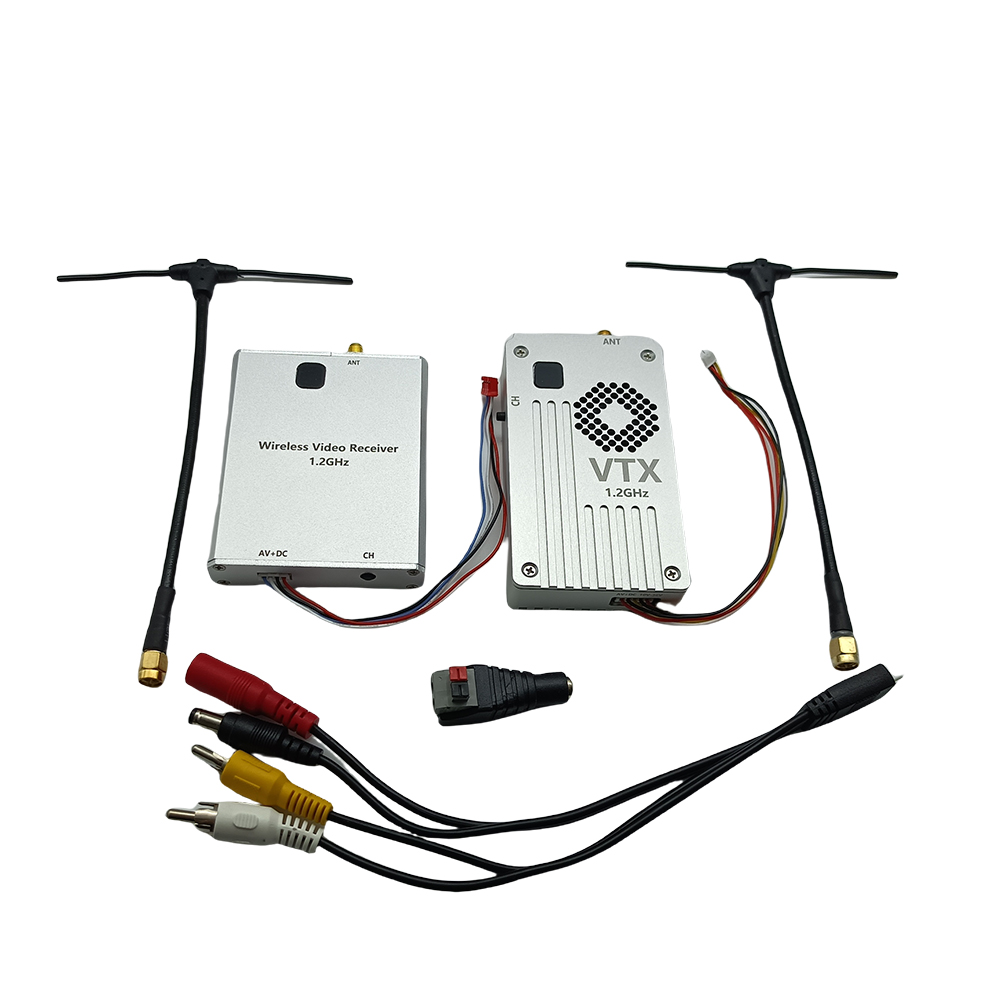

1.2Ghz 5W FPV VTX VRX 60km Wireless Video Transmitter Receiver 1170MHz-1310MHz
1.2Ghz drone Description:
The KP-12VTX5W is a cutting-edge wireless video transmission device designed for a wide range of applications. It boasts features like FM modulation, a brand-new frequency, and high receiver sensitivity for clear and stable video transmission. With a ground high-gain antenna, it can cover impressive distances in different environments, making it ideal for various use cases.
Crafted with special metal and equipped with a high-speed fan for efficient heat dissipation, the transmitter is built for durability and long-term performance. Its universal AV interface ensures compatibility with a variety of devices such as cameras, VCDs, and DVDs, making it versatile and easy to integrate into existing setups.
Not limited to CCTV security projects, the KP-12VTX5W is also suitable for video transmission in FPV systems, drones, model aircraft/helicopters, and unmanned vehicles. Customizable data and encryption options further enhance its flexibility for different applications.
1.2GHz 5W drone VTX Specification:
Model number: | KP-12VTX5W |
Voltage | DC 10V~36V |
Current | 1.2A |
Modulation | FM |
Frequency | 1.2Ghz~1.3Ghz (optional) |
Channels | 8 channels |
Frequency band | 1020 ~ 1160Mhz / 1080 ~ 1360Mhz /1170 ~ 1310Mhz (other frequencies customization) |
Transmit Power | 5 watt (full power) |
Video Output | 1 Vp-p(FM) |
Temperature | -10℃ ~ +50℃ |
Antenna port | SMA |
Transmitter Weight | 90g |
Dimensions | 98*55*18mm (without antenna) |
1.2Ghz VRX Specification:
Voltage | DC 10V~18V |
Receiving sensitivity | -85dB |
Modulation | FM |
Frequency | 1.2GHz~1.3GHz (optional) |
Channels | 8 channels |
Frequency band | 1020 ~ 1160Mhz / 1080 ~ 1360Mhz /1170 ~ 1310Mhz (other frequencies customization) |
Video Output | 1 Vp-p(FM) |
Temperature | -10℃ ~ +50℃ |
Antenna port | SMA |
Transmitter Weight | 60g |
Dimensions (L * W * H) | 75*45*20mm |
