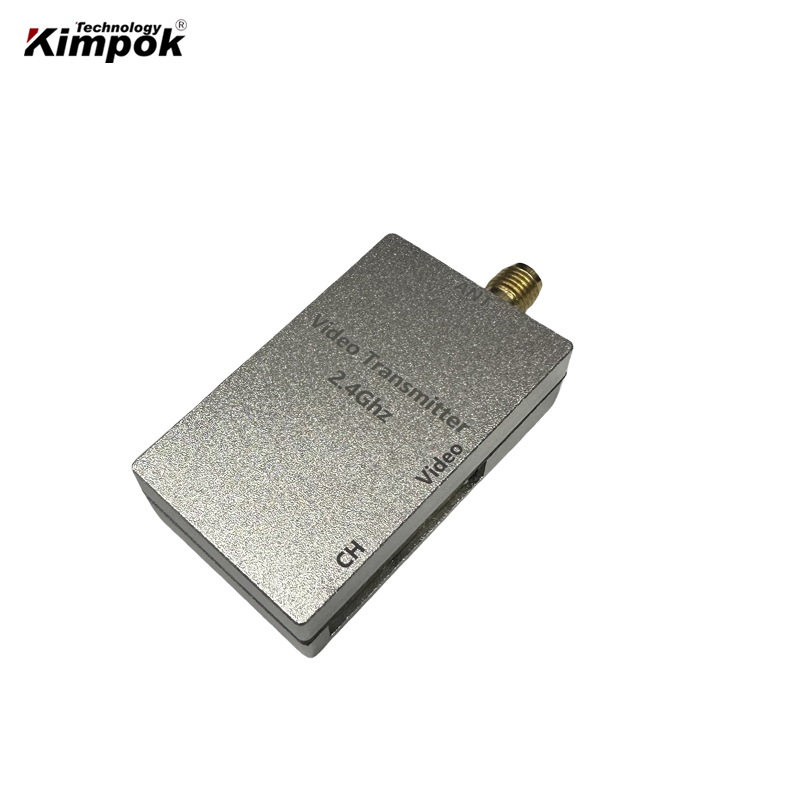

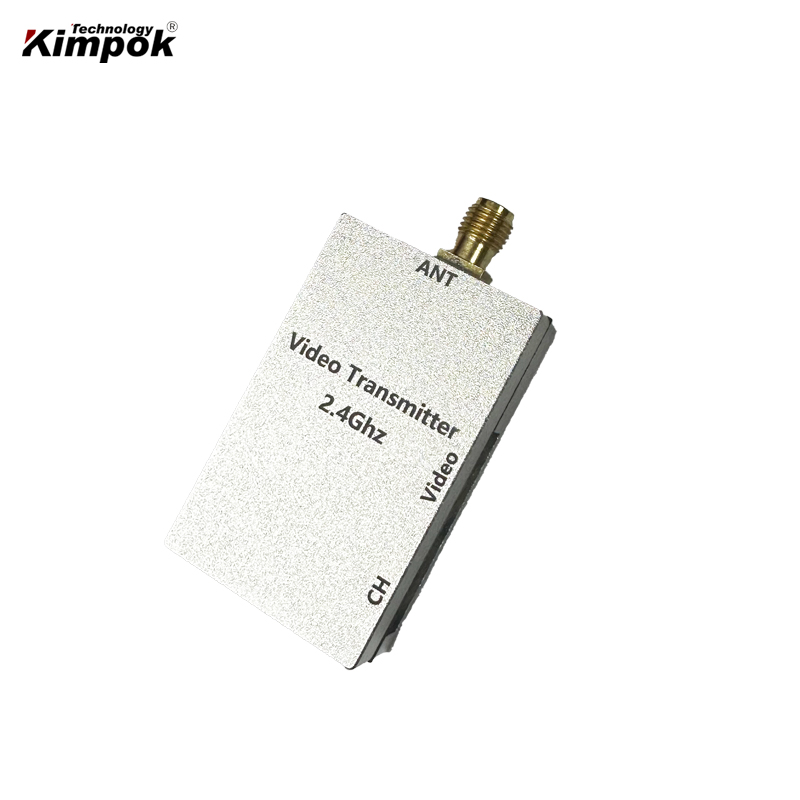

2.4Ghz 1W FPV VTX Wireless Video Transmitter FM Video Link 20km LOS
2400Mhz VTXDescription:
The KP-24VTX1W wireless video transmission equipment is designed for excellent performance across various aspects, with a large power margin making it highly suitable for complex physical environments. Key features include:
Transmission Range:
Transmitter Technology: Equipped with superb transmitter technology and constructed with special metal for improved heat dissipation, making it ideal for extended operational hours.
Signal Input: Supports a common AV interface for signal input, enabling seamless compatibility with cameras, VCDs, DVDs, and other conventional AV interfaces.
Applications:
Specification:
Voltage | DC 12V |
Frequency | 2.4Ghz |
Channels | 4 Channels |
Transmit Power | 1000mW |
Video Output | 1 Vp-p(FM) |
Audio Output | 1 Vp-p(FM) |
Audio Carrier Ware | 5.5M 6.0M |
Frequency | 2490MHz, 2510MHz, 2390MHz, 2370MHz |
Temperature | -10°C ~ +50°C |
Transmitter Weight | 50g |
Dimension | 46*28*8mm |
|
|
