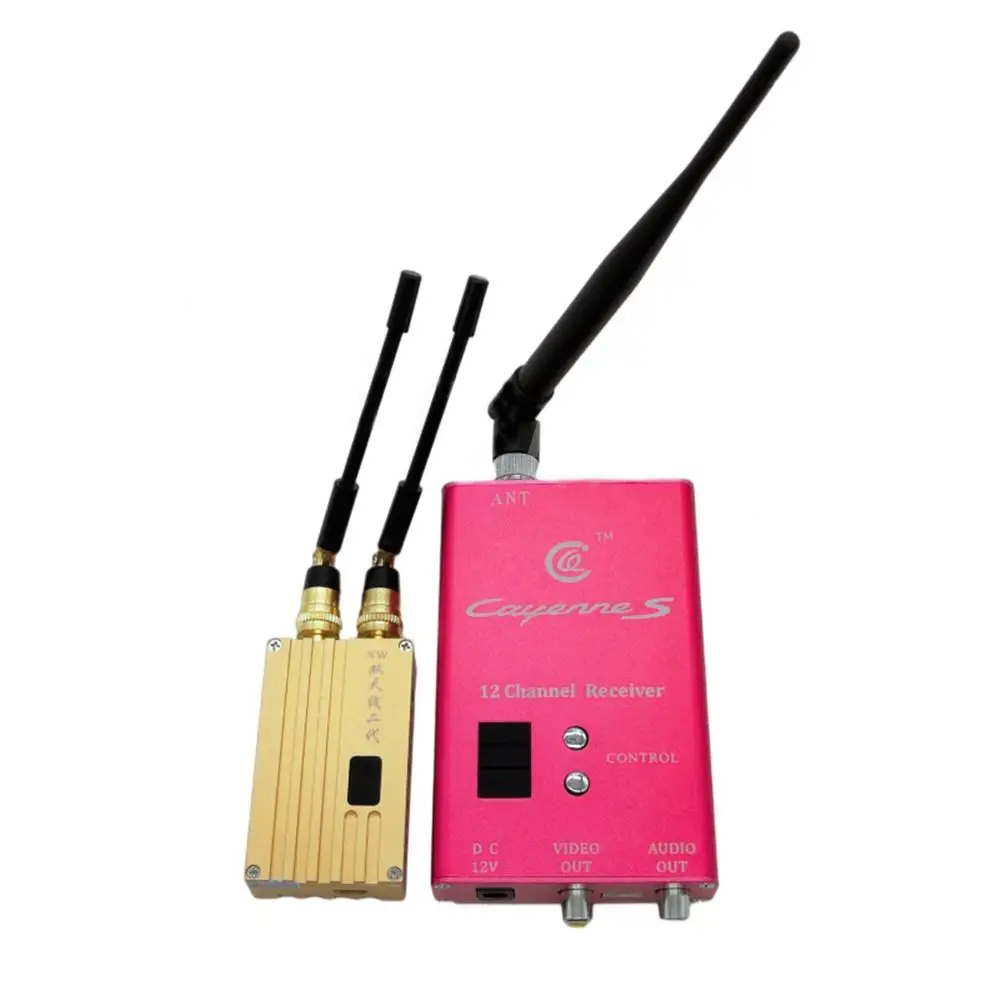

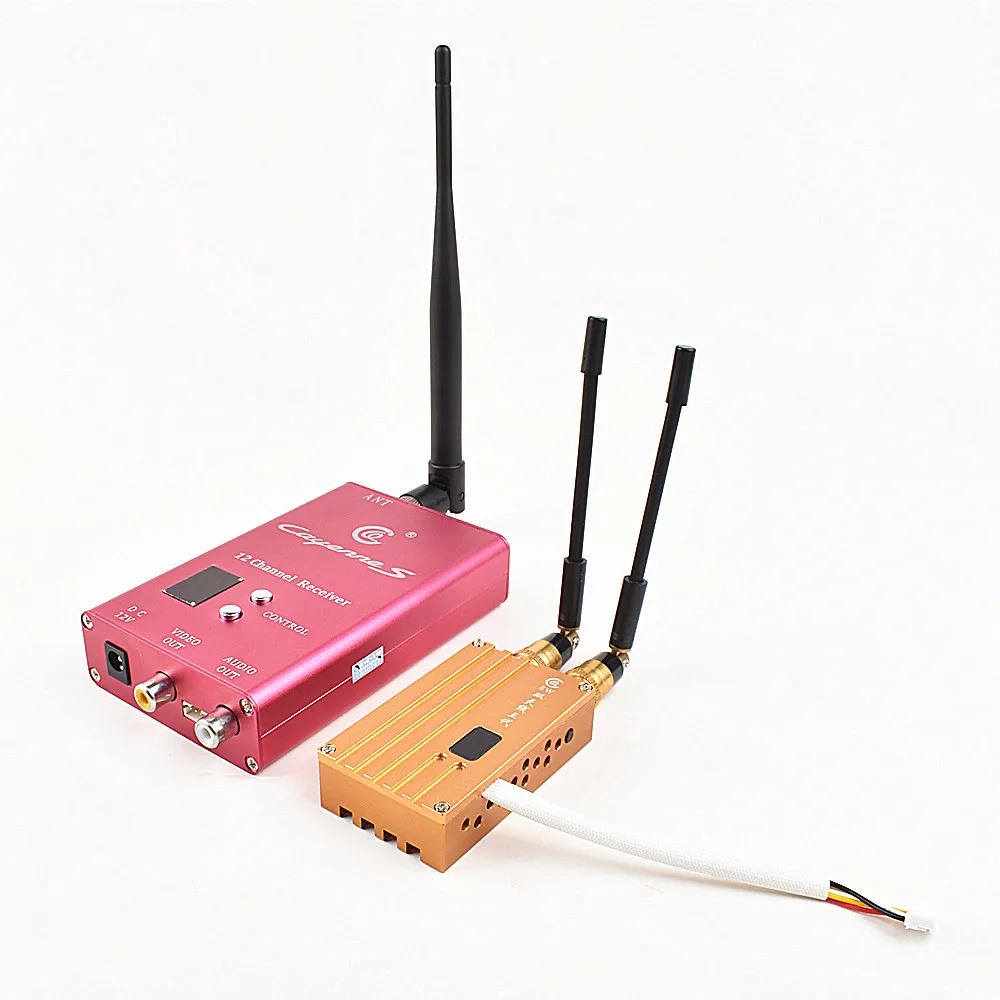

40km LOS UAV / FPV Wireless Video Transmitter and Receiver 8W 1.2Ghz Drones Video Link 6 Channels
Description:
KP-12TX8WD wireless video transmission equipment is an excellent
all aspects of performance are more varieties, and its large power
margin, more suitable for complex physical environment. The use of
0dB (Original small antenna) in full to the antenna, the open area
to ensure the transmission 10~30km or so, if the raising of the
high gain directional antenna, increased to 40km LOS on ground; and
up to 40km LOS from air to ground. And transmitter technology is
superb and the special metal is more conducive to heat, more
suitable for long hours of work. Signal input with common AV
interface, it can easily work with camera, VCD, DVD and all other
conventional AV interfaces compatible.
It's not only a professional wireless CCTV transmitter and receiver
for CCTV security projects but also used in the line of FPV system,
UAV, RC airplanes/helicopters, Video and Data signals at the same
time in cars of Unmanned Equipment.
Transmitter parameter:
Voltage | 12V DC |
Current | 700mA |
Frequency | 1.2GHz (1080MHz, 1120MHz, 1160MHz, 1200MHz, 1240Mhz, 1280MHz, 1320MHz, 1360MHz) |
Number of channels | 8 channels |
RF power | 8 watt |
Video Output | 1 Vp-p(FM) |
Audio Output | 1 Vp-p(FM) |
Audio Carrier Ware | 5.5M 6.0M |
Temperature | -10℃~ +50℃ |
Weight | 98g |
Dimensions (L*W*H) | 67x40x18mm |
Overall Configuration | Transmitter, AV cable, antenna |

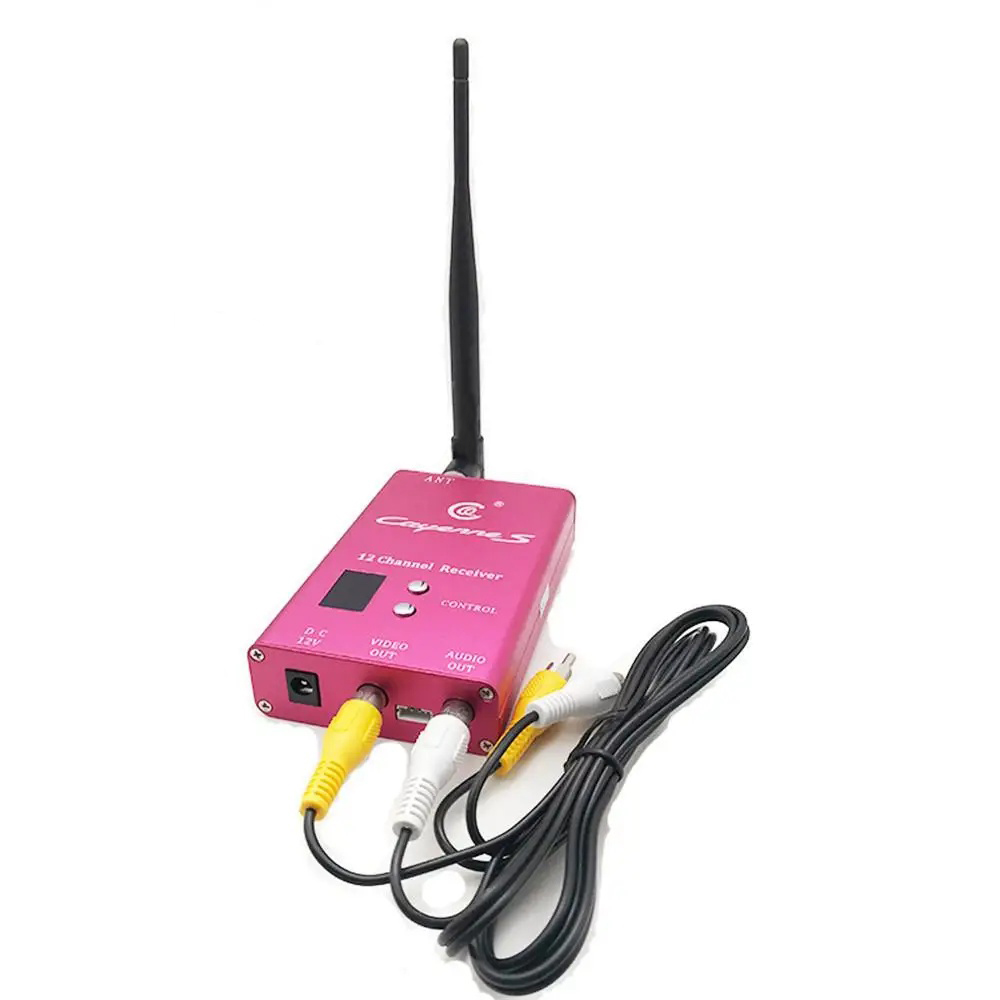

Receiver parameter:
Frequency | 1.2Ghz |
Channel | 12 channels |
Working voltage | DC 12V |
Current consumption | 260mA |
Weight | 115g |
Size | 115*80*21mm |
Accessories | receiver, antenna, AV cable |
|
|
