| Brand Name : | KimpoK |
| Model Number : | KP-33VTX4WD |
| Price : | $40.00 - $83.00/pieces |
Product Description:

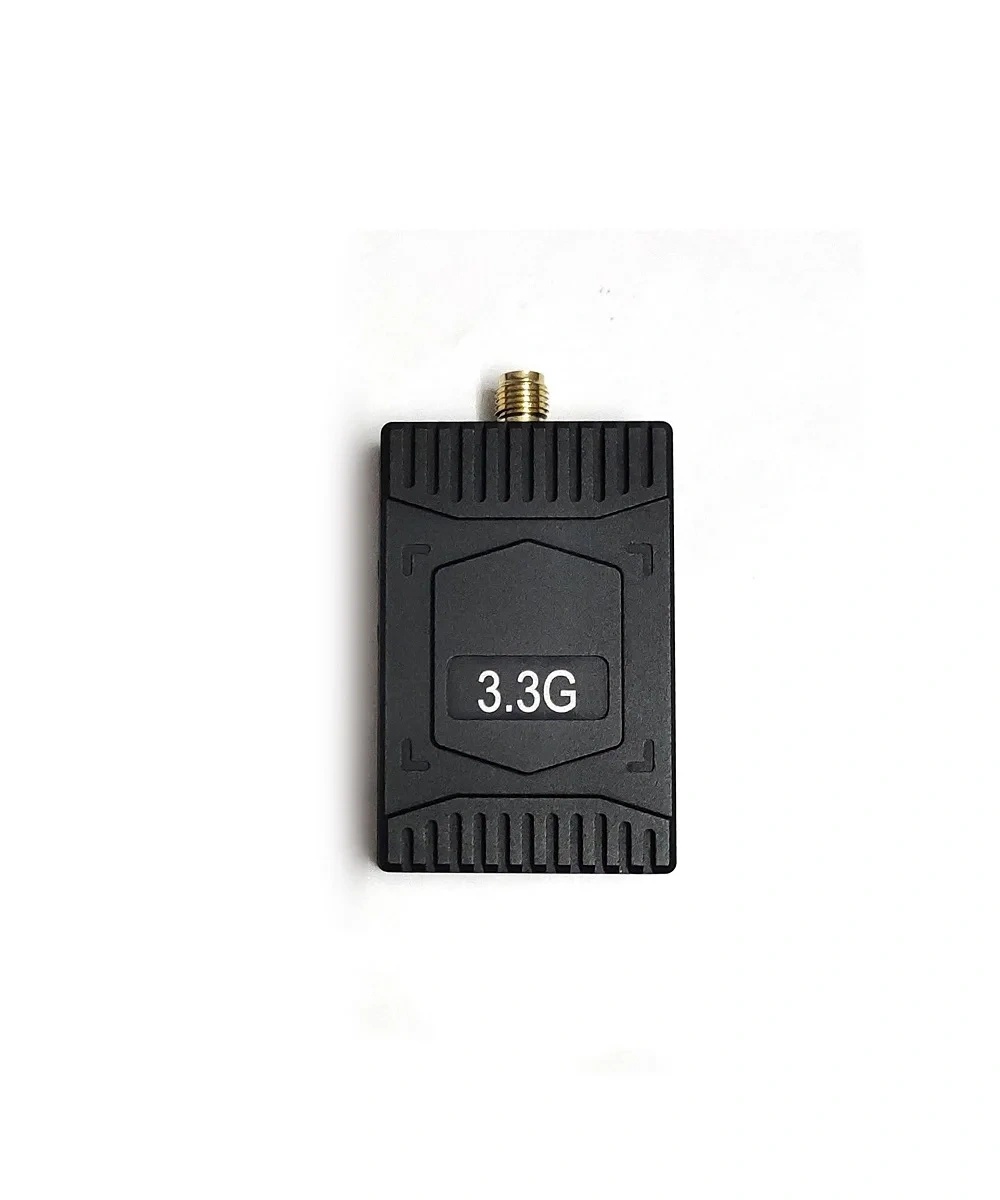

This Analog Video Receiver can efficiently receive video signals up to 3.3Ghz, making it ideal for use in unmanned aerial vehicles (UAVs) and other remote applications. The equipment is designed to operate in extreme temperature conditions, ranging from -10 ° C to +50 ° C, ensuring reliable and consistent performance in any environment.

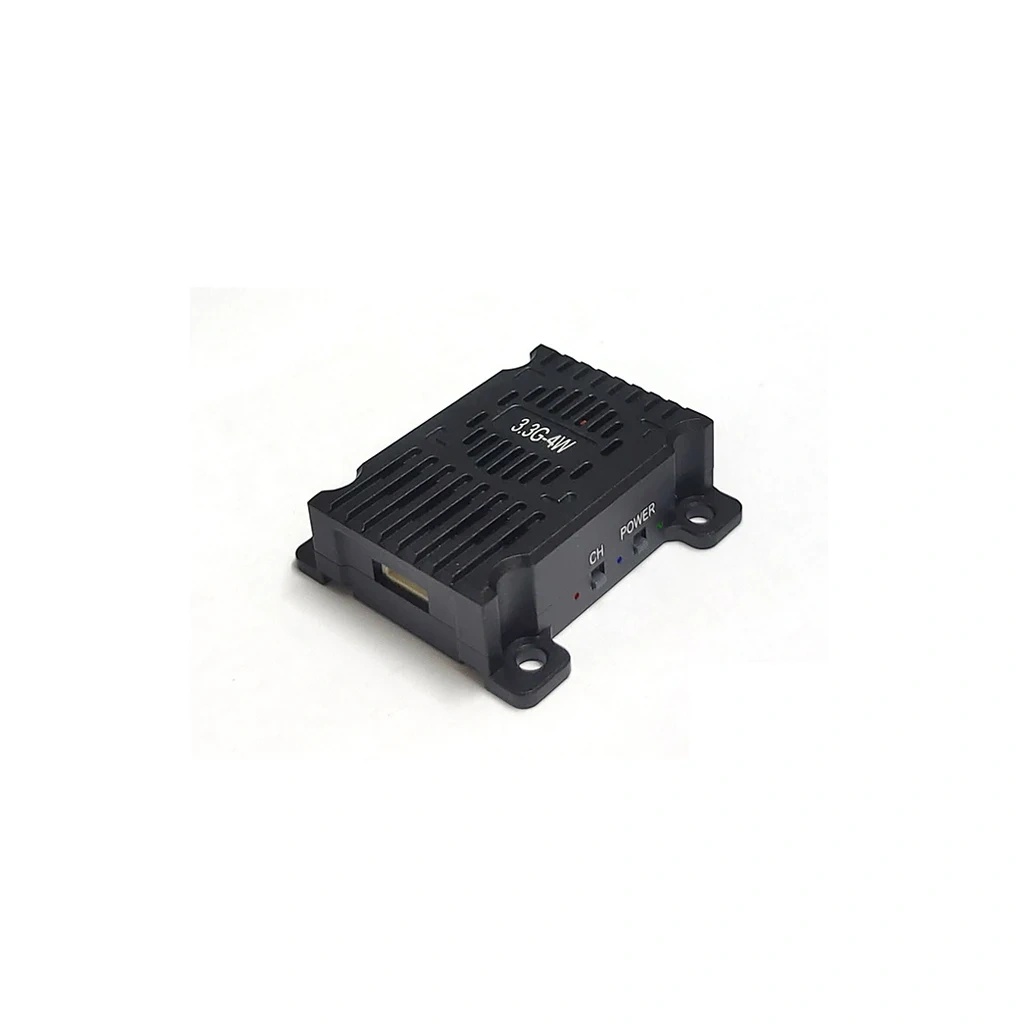

Analog video transmitters are equipped with 12V DC power and are easy to install and use, providing a wide range of options for transmitting video signals.
Whether you're looking to transmit video signals for surveillance, security, or entertainment purposes, the Analog Video Transmitter is the perfect device for the job. Its compact and lightweight design makes it easy to carry and install, while its powerful performance ensures that you get clear and high-quality video signals every time.
VTX Specification:
Model number: | KP-33RX |
Voltage | DC 12V |
Current | 600mA |
Modulation | FM |
Frequency | 3.3Ghz |
Channels | 16 channels |
Video Output | 1 Vp-p(FM) |
Temperature | -10℃ ~ +50℃ |
Antenna port | SMA |
Dimensions | 50*32*11mm (antenna port not included ) |
VRX Specification:
Model number: | KP-33RX |
Voltage | DC 12V |
Current | 600mA |
Modulation | FM |
Frequency | 3.3Ghz |
Channels | 16 channels |
Video Output | 1 Vp-p(FM) |
Temperature | -10℃ ~ +50℃ |
Antenna port | SMA |
Dimensions | 50*32*11mm (antenna port not included ) |
|
|
