1.2Ghz 8W FPV Red Wireless Video Transmitter for Drone Long range transmission
KP-12TX8WH Wireless Video Transmission Equipment
The KP-12TX8WH wireless video transmission equipment offers excellent performance in various aspects, with a large power margin making it more suitable for complex physical environments. Key features include:
Transmission Range: When using the 0dB (original small antenna) to the full extent, the transmission range in open areas can reach approximately 8 to 15 kilometers. By using a high-gain directional antenna, this range can be extended to 20 kilometers Line of Sight (LOS) on the ground.
Transmitter Technology: The transmitter technology is exquisite, and the special metal construction enhances heat dissipation, making it suitable for long hours of operation.
Signal Input: The equipment utilizes a universal AV interface for signal input, ensuring compatibility with traditional AV interfaces such as cameras, VCDS, and DVDS.
Applications:
Transmitter parameter:
Voltage | DC 12V |
Current | 700mA |
Frequency | 1.2Ghz (1080MHz, 1120MHz, 1160MHz, 1200MHz, 1240Mhz, 1280MHz; 1320Mhz; 1360Mhz) |
Number of channels | 8CHs |
Transmit Power | 8000mW |
Video Output | 1 Vp-p(FM) |
Audio Output | 1 Vp-p(FM) |
Audio Carrier Ware | 5.5M 6.0M |
Distance (Open environment) | 5~10KM |
Overall Configuration | Transmitter, AV cable, antenna |
Temperature | -10℃ ~ +50℃ |
Transmitter Weight | 200g |
Dimensions (L * W * H) | 95x50x20mm |

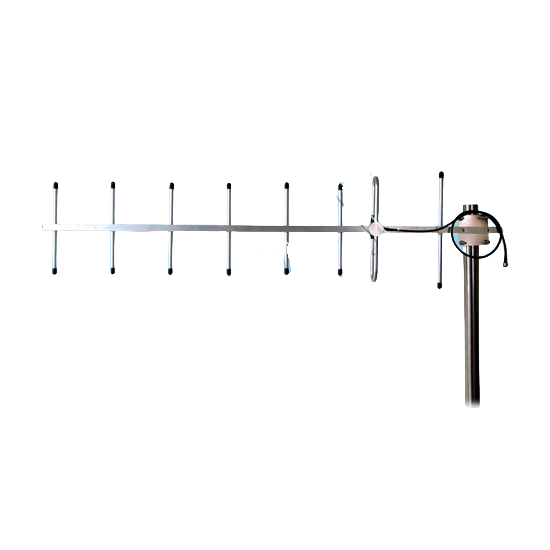

Yagi antenna parameter:
Category | Yagi Antennas |
Model | KP-YA8 |
Elements | 8 |
Frequency Range-MHZ | 1060~1200 |
Bandwidth-MHZ | 140 |
Gain-dBi | 12 |
Horizontal Beamwidth-° | 48 |
Vertical Beamwidth-° | 40 |
F/B Ratio-dB | ≥16 |
VSWR | ≤1.5 |
Nominal Impedance-Ω | 50 |
Polarization | Vertical or Horizontal |
Maximum Power-W | 100 |
Dimcnsions-m | 0.6 |
Weight-kg | 0.5 |
Ratcd Wind Velocity-m/s | 60 |
Connector | N Type |
Mounting Mast Diameter-mm | 30~50 |
|
|
