600~700Mhz FPV Drone VTX VRX Video Transmitter 2W Wireless Analog Link 60g
Product Description:
Equipped with a 4W transmit power, this Analog Video Transmitter can efficiently transmit video signals up to 720Mhz, making it ideal for use in unmanned aerial vehicles (UAVs) and other remote applications. The device has been designed to operate under extreme temperature conditions, ranging from -10℃ to +50℃, ensuring reliable and consistent performance in any environment.
The Analog Video Transmitter comes with a power supply of 12V DC, making it easy to install and use. Additionally, it operates in a frequency band of
600Mhz, 620Mhz, 640Mhz, 660Mhz, 680Mhz, 700Mhz, 720Mhz,740Mhz, providing a wide range of options for transmitting video signals.
Whether you're looking to transmit video signals for surveillance, security, or entertainment purposes, the Analog Video Transmitter is the perfect device for the job. Its compact and lightweight design makes it easy to carry and install, while its powerful performance ensures that you get clear and high-quality video signals every time.
Features:

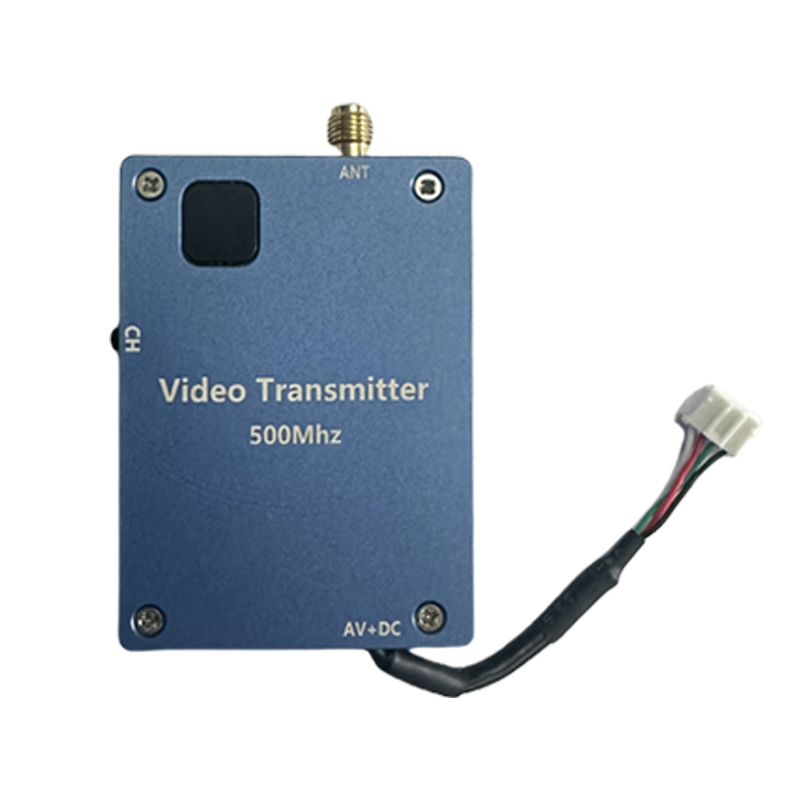

500Mhz 2W FPV VTX Specification:
Model number: | KP-500TX2W |
Voltage | DC 12V |
Current | 600mA |
Modulation | FM |
Frequency | 300Mhz~1Ghz optional |
Channels | 8 channels |
Frequency band (choose one series) | 300Mhz: (320Mhz, 340Mhz, 360Mhz, 380Mhz) (customization) 500Mhz: (460Mhz, 490Mhz, 500Mhz, 520Mhz, 540Mhz, 560Mhz, 580Mhz, 600Mhz) 600Mhz: (620Mhz, 640Mhz, 660Mhz, 680Mhz, 700Mhz, 720Mhz, 740Mhz, 760Mhz) 800Mhz: (800Mhz, 820Mhz, 840Mhz, 860Mhz, 880Mhz, 900Mhz, 920Mhz, 940Mhz) 1Ghz: (980Mhz, 1000Mhz, 1020Mhz, 1040Mhz, 1060Mhz, 1080Mhz, 1100Mhz, 1120Mhz) |
Transmit Power | 2 watt |
Video Output | 1 Vp-p(FM) |
Temperature | -10℃ ~ +50℃ |
Antenna port | SMA |
Transmitter Weight | 83g |
Dimensions | 64*46*20mm (antenna port not included ) |
VRX Specification:
Model number: | KP-RX500 |
Voltage | DC 12V |
Receiving sensitivity | -85dB |
Modulation | FM |
Frequency | 300Mhz~1Ghz optional |
Channels | 8 channels |
Frequency band (choose one series) | 300Mhz: (320Mhz, 340Mhz, 360Mhz, 380Mhz) (customization) 500Mhz: (490Mhz, 500Mhz, 520Mhz, 540Mhz, 560Mhz, 580Mhz, 600Mhz, 620Mhz) 600Mhz: (620Mhz, 640Mhz, 660Mhz, 680Mhz, 700Mhz, 720Mhz, 740Mhz, 760Mhz) 800Mhz: (800Mhz, 820Mhz, 840Mhz, 860Mhz, 880Mhz, 900Mhz, 920Mhz, 940Mhz) 1Ghz: (980Mhz, 1000Mhz, 1020Mhz, 1040Mhz, 1060Mhz, 1080Mhz, 1100Mhz, 1120Mhz) |
Video Output | 1 Vp-p(FM) |
Audio Output | 1 Vp-p(FM) |
Audio Carrier Ware | 5.5M 6.0M |
Temperature | -10℃ ~ +50℃ |
Antenna port | SMA |
Transmitter Weight | 83g |
Dimensions (L * W * H) | 83*68*15mm |
Antenna must be connected before connect to power, otherwise it will be easy to burned-out!
Installing:
A. The line has 5 plugs for connecting transmitter, camera and
power supply
One of the line's points connecting to transmitter, another has 4
plugs (red, yellow, white, black)
Red plug connect DC 12V/1000mA, can also connect battery
White and yellow plug connect to camera's audio and video apart
And black one connects camera's power input jack
B. Push the control button, can change the channel of receiver
Meanwhile, push it and last several seconds, can close the digital
play and turn into saving power model
Then push it again, can replay
The function can be able to lock channel, so as to avoid mistaking
operation
C. Set the same channel with transmitter and receiver
FAQ:
Q1: What can I buy from you?
COFDM digital AV transmitter, IP mesh radio, analog video transmitter, radio data transceiver, and transmitter receiver OEM main board.
Q2: Why should I choose you?
Our core R&D team comes from the first-class university in China, major in communication engineering. We believe that wireless communication will keep on developing in professional markets in the future.
Q3: Do you have a minimum order quantity?
No MOQ limit, 1pc is acceptable.
Q4: What kind of product service can I have?
OEM & ODM service.
Q5: What is the product warranty?
We offer two-year-warranty and lifelong maintenance.
Q6: What is the average lead time?
5-7 working days for regular model, and 20-30 working days for customized model.
Q7: What kinds of payment methods do you accept?
We accept bank transfer, Western Union, PayPal, or cash payment.
Q8: Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis / Conformance; Country of Origin, and other export documents where required.
|
|
