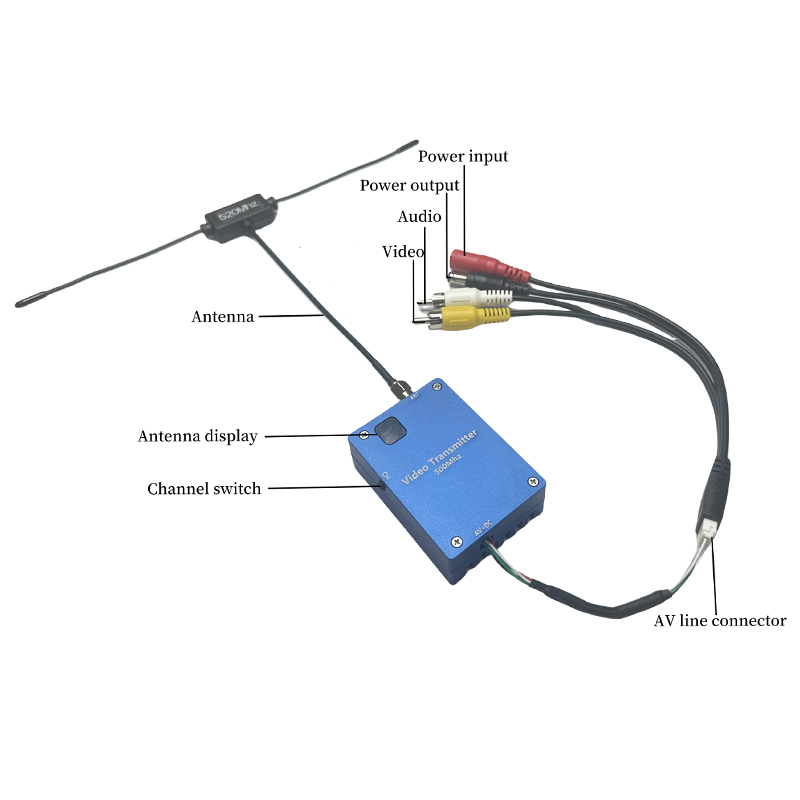

500Mhz Low Frequency Drone FPV Video Transmitter and Receiver 40km LOS
Description:
KP-500VTX2W is a new arrival wireless video transmission equipment
with non-standard frequency, the frequency band is support from
460-880Mhz, 20Mhz bandwidth. With high power of 2 watt that can
achieve 10-20km LOS from air t ground, and 1~2km NLOS in city area.
If install with high gain antennas, the transmissoin distance will
be increased too.
Transmitter technology is superb and the special metal with fan is
more conducive to heat, more suitable for long hours of work.
Signal input with common AV interface, it can easily work with
camera, VCD, DVD and all other conventional AV interfaces
compatible.
It's not only a professional wireless CCTV transmitter and receiver
for CCTV security projects but also used in the line of FPV/drones
system, UAV, RC airplanes/helicopters, video and audio at the same
time.
500Mhz Drone VTX Specification:
| Model | KP-500VTX2W |
| Voltage | DC 12V |
| Current | 600mA |
| Frequency | 300Mhz~1Ghz optional |
| Number of channels | 8 channels |
| Frequency band (choose one series) | 300Mhz: (300Mhz, 320Mhz, 340Mhz, 360Mhz, 380Mhz, 400Mhz, 420Mhz, 440Mhz) (customization) 500Mhz: (460Mhz, 490Mhz, 500Mhz,520Mhz, 540Mhz, 560Mhz, 580Mhz, 600Mhz) 600Mhz: (600Mhz, 620Mhz, 640Mhz, 660Mhz, 680Mhz, 700Mhz, 720Mhz,740Mhz) 800Mhz: (800Mhz, 820Mhz, 840Mhz, 860Mhz, 880Mhz, 900Mhz, 920Mhz, 940Mhz) 1Ghz: (980Mhz, 1000Mhz, 1020Mhz, 1040Mhz, 1060Mhz, 1080Mhz, 1100Mhz, 1120Mhz) |
| Transmit Power | 2 watt |
| Video Output | 1 Vp-p(FM) |
| Audio Output | 1 Vp-p(FM) |
| Audio Carrier Ware | 5.5M 6.0M |
| Overall Configuration | Transmitter, receiver, AV cable, antenna |
| Temperature | -20℃ ~ +70℃ |
| Transmitter Weight | 83g |
| Dimensions (L * W * H) | 64*46*20mm |
VRX Specification:
Model number: | KP-VRX500 |
Voltage | DC 12V |
Receiving sensitivity | -85dB |
Modulation | FM |
Frequency | 300Mhz~1Ghz optional |
Channels | 8 channels |
Frequency band (choose one series) | 300Mhz: (300Mhz, 320Mhz, 340Mhz, 360Mhz, 380Mhz, 400Mhz, 420Mhz, 440Mhz) (customization) 500Mhz: (460Mhz, 490Mhz, 500Mhz,520Mhz, 540Mhz, 560Mhz, 580Mhz, 600Mhz) 600Mhz: (600Mhz, 620Mhz, 640Mhz, 660Mhz, 680Mhz, 700Mhz, 720Mhz,740Mhz) 800Mhz: (800Mhz, 820Mhz, 840Mhz, 860Mhz, 880Mhz, 900Mhz, 920Mhz, 940Mhz) 1Ghz: (980Mhz, 1000Mhz, 1020Mhz, 1040Mhz, 1060Mhz, 1080Mhz, 1100Mhz, 1120Mhz) |
Video Output | 1 Vp-p(FM) |
Audio Output | 1 Vp-p(FM) |
Audio Carrier Ware | 5.5M 6.0M |
Temperature | -10℃ ~ +50℃ |
Antenna port | SMA |
Transmitter Weight | 83g |
Dimensions (L * W * H) | 83*68*15mm |
