500Mhz 40km FPV VTX 4 Watt Drone Video Transmitter Customizable Frequency
Long Range FPV VTX description:
KP-500VTX4W is a firenew wireless video transmission facility, which uses FM modulation mode and brand-new frequency, avoiding the 1.2Ghz/1.5Ghz/2.4Ghz wireless transmission that has been used more in the same range, avoiding the same frequency interference, and is more suitable for use in complex environments. The receiver sensitivity is -85dBm, and the transmitted image is clear and stable. With a ground high-gain antenna, it can transmit 2~3km in the open area of the city, and about 40km in the air-to-ground LOS with high gain antenna (the transmission distance is different in different environments, and the specific transmission distance depends on the actual working environment).
The transmitter is exquisitely crafted, made of special metal, and also has a high-speed fan, which is more conducive to heat dissipation and more suitable for long-term work.
The signal input uses a universal AV interface, which is easily compatible with all conventional AV interfaces such as cameras, VCDS, DVDS, etc.
KP-500VTX4W is not only a professional wireless CCTV transmitter and receiver for CCTV security projects, but also can be used for video transmission of FPV systems, drones, model aircraft/helicopters, unmanned equipment vehicles, etc. (customizable if data needs to be transmitted).
500Mhz 4W VTX specification:
Voltage | DC 12V~36V |
Current | 900mA |
Frequency | 500Mhz optional |
Frequency band | 460Mhz, 490Mhz, 500Mhz, 520Mhz, 540Mhz, 560Mhz, 580Mhz, 600Mhz |
Number of channels | 8 channels |
Transmit Power | 4 watt |
Video Output | 1 Vp-p(FM) |
Audio Output | 1 Vp-p(FM) |
Audio Carrier Ware | 5.5M 6.0M |
Overall Configuration | Transmitter, receiver, video cable, antenna |
Temperature | -10℃~+50℃ |

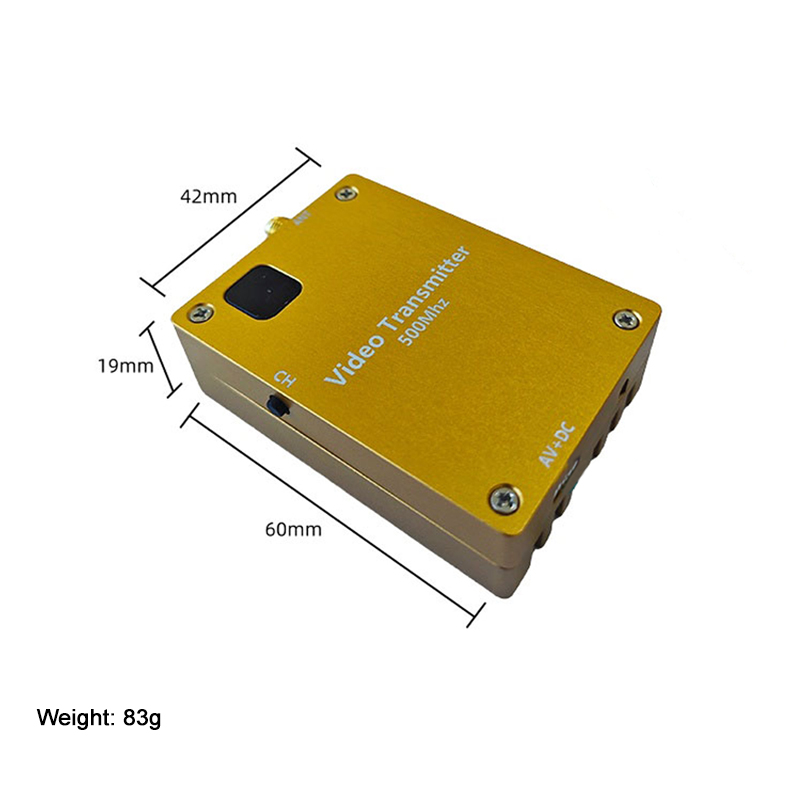

Transmitter Weight | 83g |
Dimensions (L * W * H) | 64*46*20mm(antenna port not included) |
500Mhz VRX specification:
Voltage | DC 12V |
Frequency | 800Mhz |
Frequency band | 460Mhz, 490Mhz, 500Mhz, 520Mhz, 540Mhz, 560Mhz, 580Mhz, 600Mhz |
Number of channels | 8 channels |
Video Output | 1 Vp-p(FM) |
Audio Output | 1 Vp-p(FM) |
Audio Carrier Ware | 5.5M 6.0M |
Overall Configuration | Transmitter, receiver, video cable, antenna |
Temperature | -10℃~+50℃ |
Transmitter Weight | 83g |
Dimensions (L * W * H) | 83*68*15mm(antenna port not included) |
Tips:
To transmit long range, you will need a high gain antenna on VRX side, please contact us to recommend the suitable high gain antenna.
