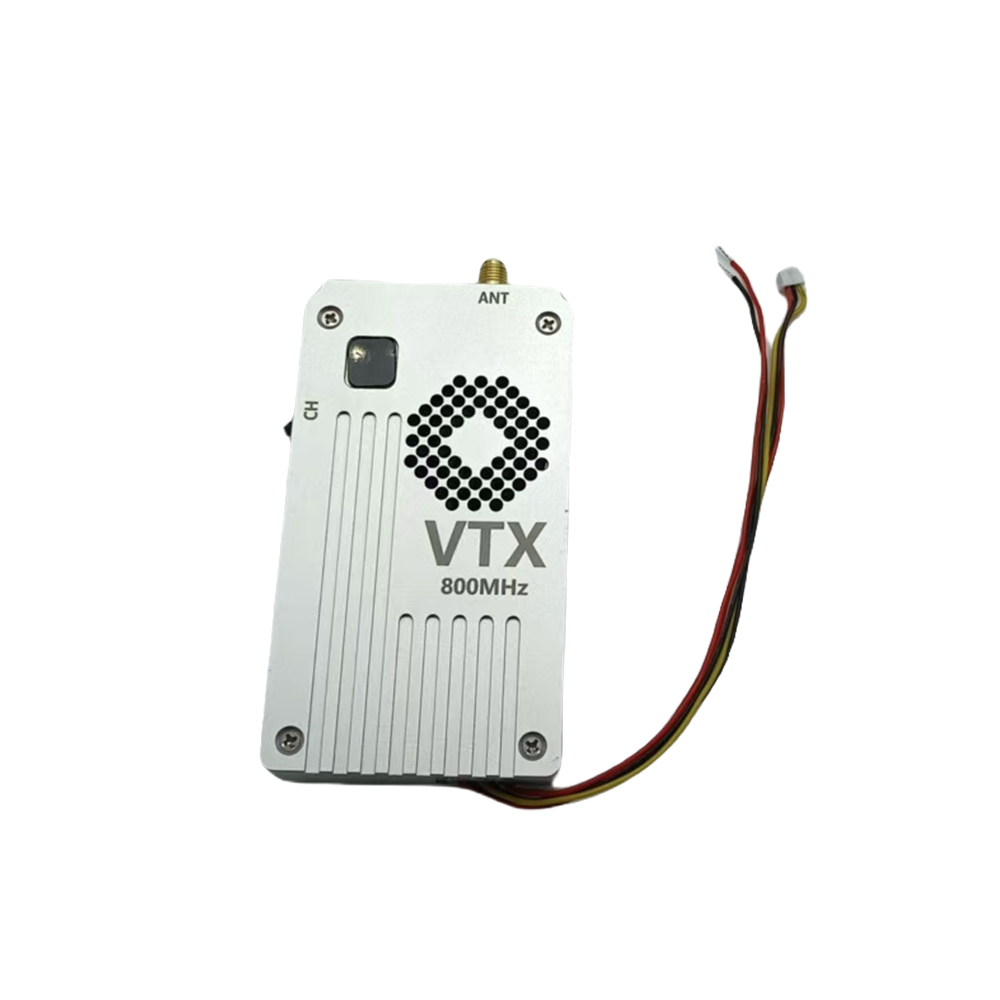

800Mhz 5W Wireless Image Transmission 800M Drone Video Transmitter Receiver FPV VTX

Description:

This is a new wireless video transmission equipment, using frequency modulation mode and a new frequency, to avoid the use of more in the same range of 1.2Ghz/1.5Ghz/2.4Ghz wireless transmission standard frequency, more suitable for use in complex environments. The sensitivity of the receiver is -85dBm, and the transmission image is clear and stable. The ground high-gain antenna can transmit 5~10km in the open area of the city, and the high-gain antenna can transmit about 60km in the air-to-ground LOS (the transmission distance is different in different environments, and the specific transmission distance depends on the actual working environment).

Transmitter Parameter:

Product	Analog video receiver
Voltage	DC 10V~18V
Receiving sensitivity	-85dB
Modulation	FM
Frequency	800Mhz
Channels	8 channels
Frequency band	800Mhz, 820Mhz, 840Mhz, 860Mhz, 880Mhz, 900Mhz, 920Mhz, 940Mhz
Video Output	1 Vp-p(FM)
Temperature	-10℃ ~ +50℃
Antenna port	SMA female
Transmitter Weight	83g
Dimensions (L * W * H)	75*45*20mm (antenna port not included)
