    1.2Ghz 1W FPV Video Transmitter 10-20km Range 8 Channels

    Ask Lasest Price
    Brand Name : Kimpok
    Model Number : KP-12VTX1000M
    Certification : CE certificate
    Price : Negotiation
    Payment Terms : T/T,Paypal,L/C
    Supply Ability : 5000pcs/Month
    Delivery Time : 3-7 working days
    • Product Details
    • Company Profile

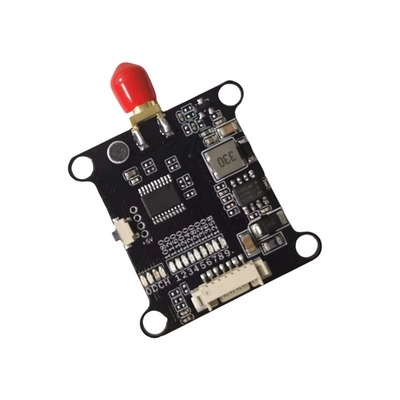

    1.2Ghz 1W FPV Video Transmitter 10-20km Range 8 Channels

    10~20km 1.2G FPV Wireless Video Transmitter Module
    1.2Ghz 1W VTX Long Range Digital Transmission
    Product Overview
    The KP-12VTX1000M is a high-performance 1.2Ghz FPV wireless video transmitter module featuring digital transmission technology with a range of 10-20km. This 1W power module offers stable, long-range video transmission with 8 selectable channels.
    Key Features
    • Long-range digital transmission (10-20km)
    • 1.2Ghz frequency with 1W RF power output
    • 8 selectable channels for flexible operation
    • FM modulation type with PLL frequency control
    • Compact design (45.5×35.8×8.4mm) and lightweight (10g)
    • Wide operating voltage range (DC 7-36V)
    • Includes comprehensive protection features
    Technical Specifications
    ItemSpecification
    Frequency band1120-1360Mhz
    Channel8 channels
    Channel Frequency1120/1160/1200/1240/1280/1320/1360/1258(MHz)
    RF power0.1mW / 25mW / 200mW / 1000mW
    Modulation typeFM
    Frequency controlPLL
    Operating Temperature-10℃~+60℃
    Input power supplyDC 7-36V
    Dimensions45.5mm(L)×35.8mm(W)×8.4mm(H)
    Weight10g
    Product Information
    Brand: Kimpok
    Model Number: KP-12VTX1000M
    Certification: CE Certification
    Document: 1.2G 2W VTX user manual.pdf
    Installation & Usage Notes
    • Maintain adequate space around the module for proper cooling and airflow
    • Verify correct voltage range and polarity before powering on
    • Always install antenna at RF output terminal before operation
    • Refer to included manual for proper wiring and setup
    Package Contents
    • VTX module (1pc)
    • "Y" type antenna (1pc)
    • 7P 1.25 single head cable (1pc)
    Ordering Information
    Minimum Order Quantity: 1 Piece
    Packaging: International standard packing
    Delivery Time: 3-7 work days
    Payment Terms: T/T, PayPal, Alipay
    Supply Ability: 5000 pieces/month
